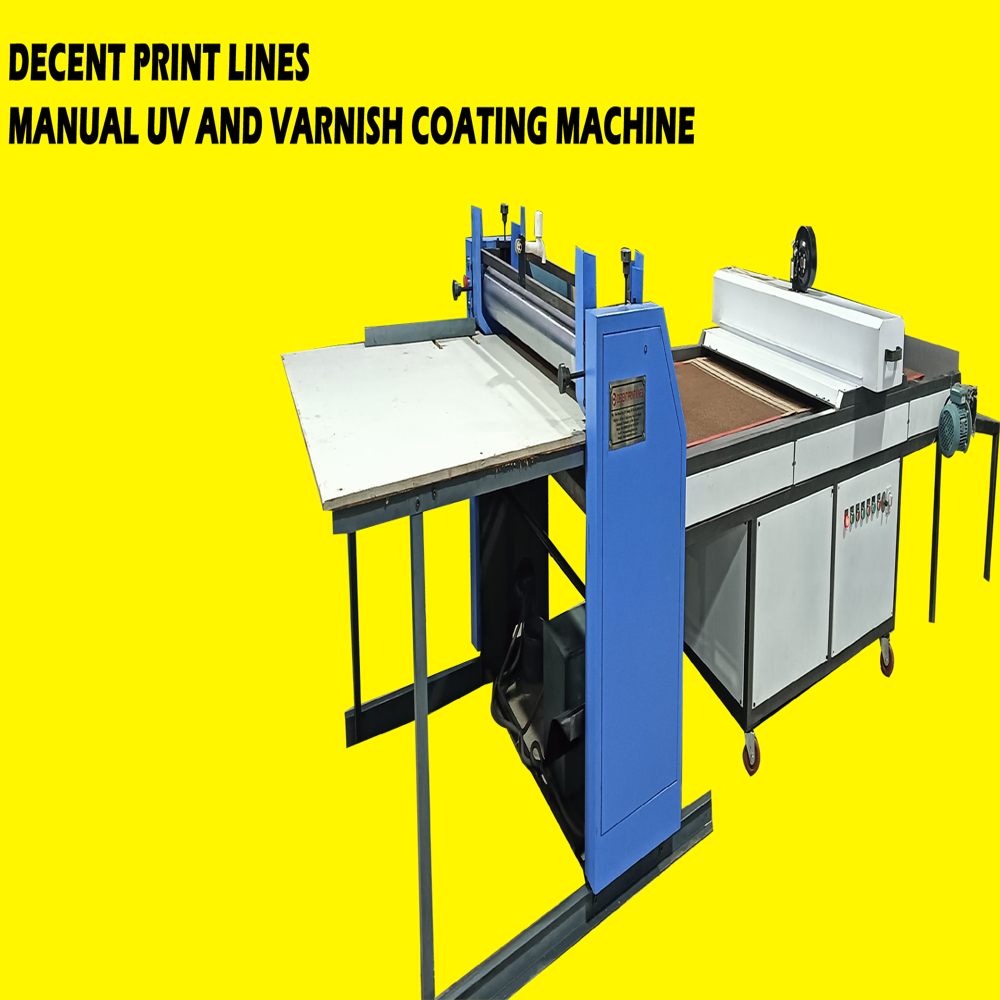

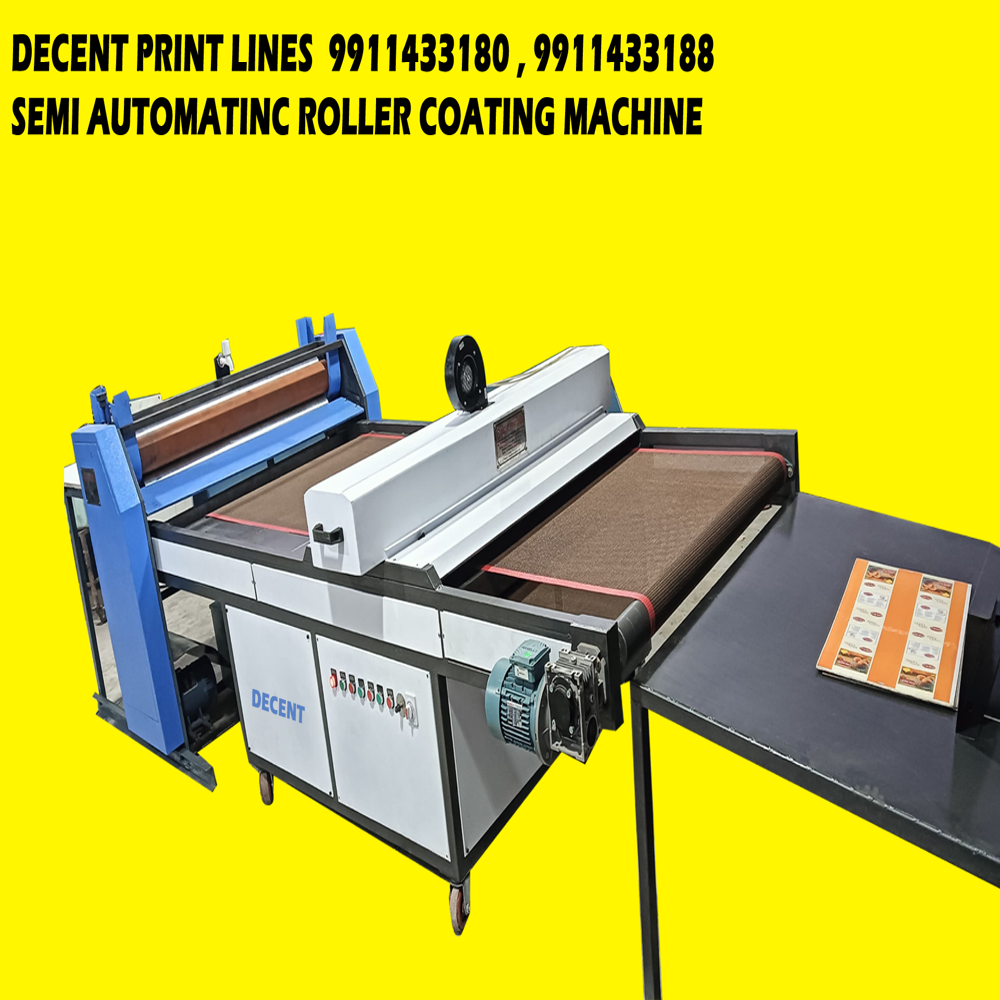

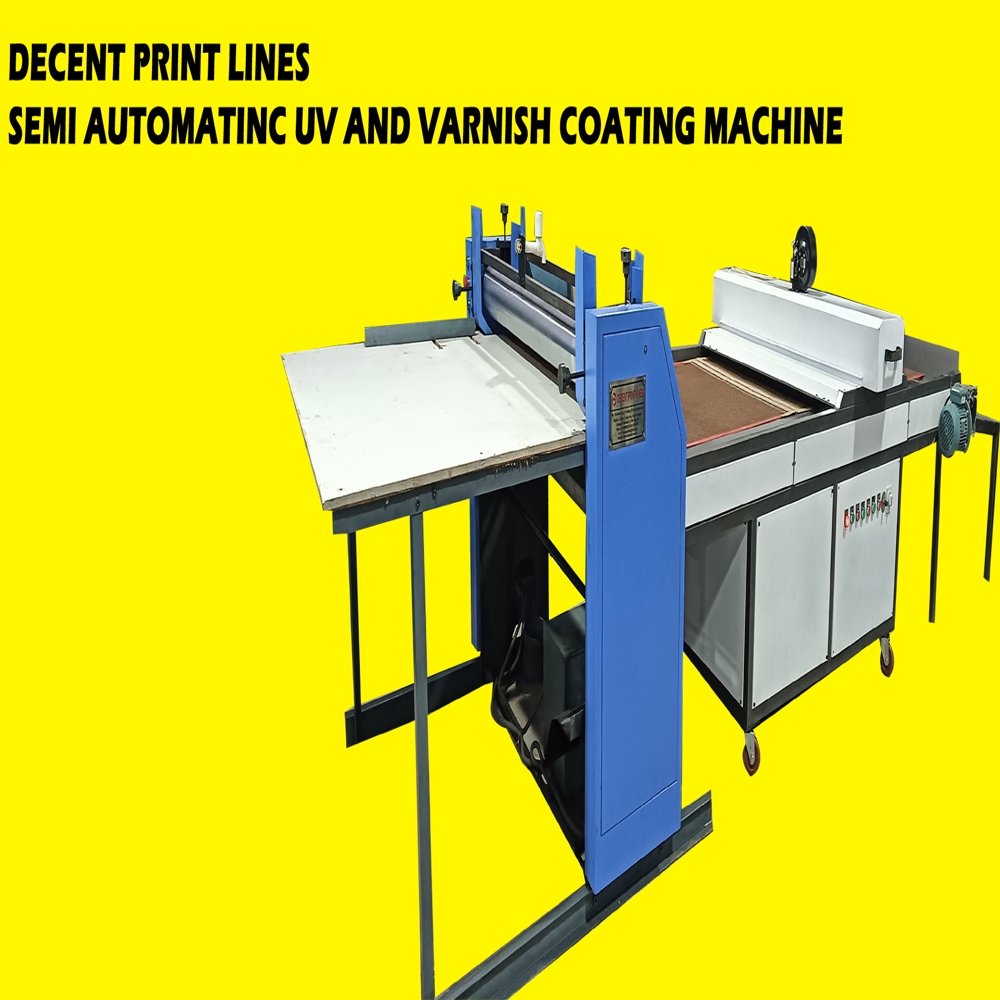

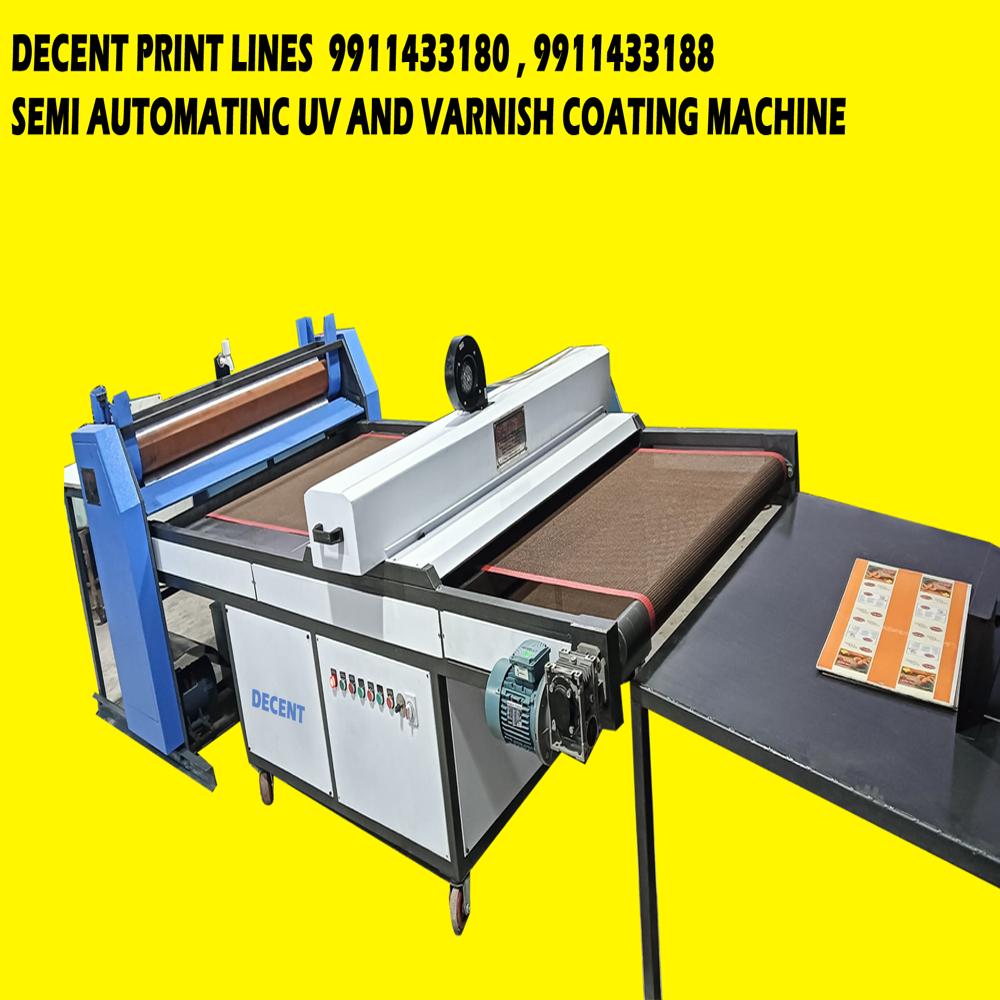

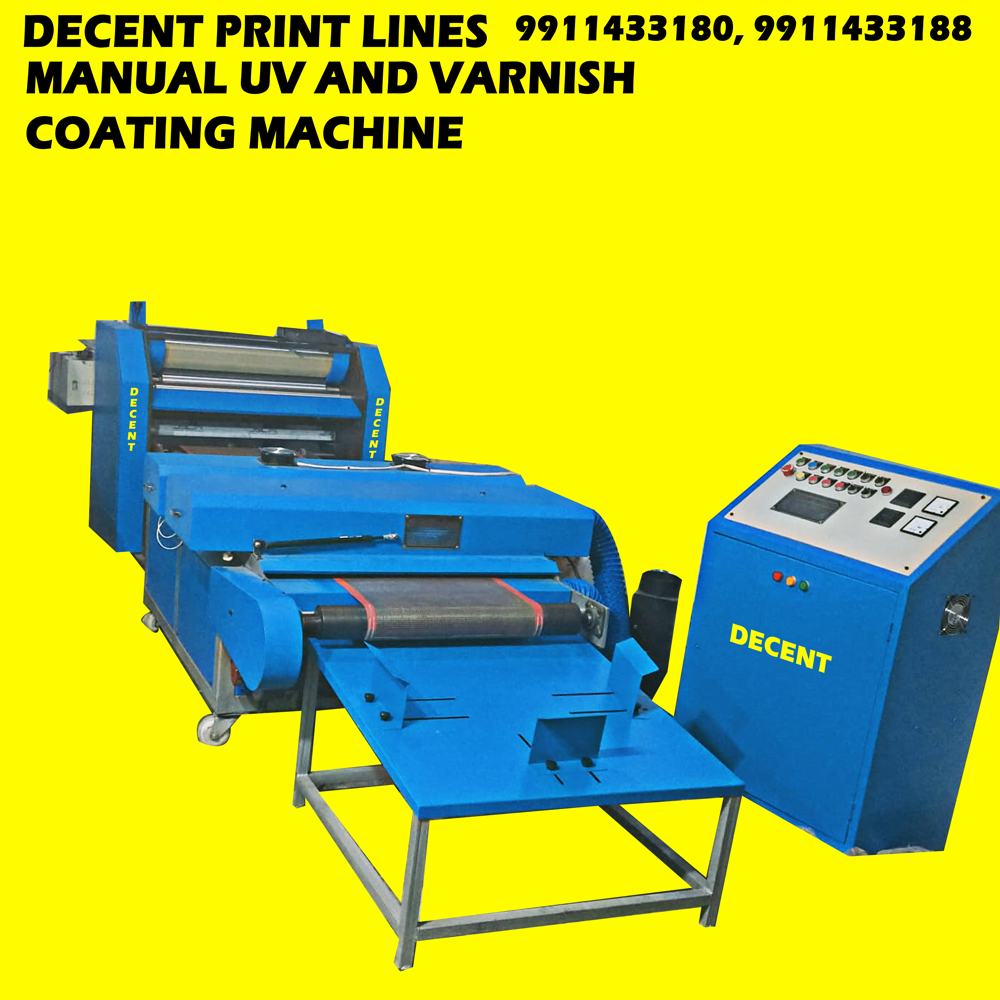

UV Coating and UV Curing Machine

About UV Coating and UV Curing Machine

Here's a comprehensive breakdown of UV coating machine specifications:

I. Types of UV Coating Machines:

Before diving into specifications, it's helpful to understand the different types:

1. Full/Flood UV Coaters: Apply UV coating to the entire surface of the material.

2. Spot UV Coaters: Apply UV coating to specific areas of a print, creating a contrasting matte and glossy effect (often using a printing plate similar to offset).

3. Drip-Off UV Coaters: A specialized type of spot UV that creates a textured, "drip" or "orange peel" effect by applying a matte varnish followed by a high-gloss UV coating.

4. Roller Coaters: The most common type, where the coating is applied via a series of rollers.

5. Spray Coaters: For irregular shapes or specific industrial applications.

6. Tabletop UV Coaters: Compact models for small-scale operations or testing.

7. Online vs. Offline:

   • Online: Integrated directly with a printing press, applying the coating immediately after printing.

   • Offline: A standalone machine where printed sheets are fed after the printing process.

II. Key Specifications of UV Coating Machines:

1. Coating Method:

   • Roller Coating: The most prevalent for sheet-fed applications.

   • Spray Coating: For irregular surfaces or specialized industrial use.

2. Maximum and Minimum Sheet Size:

   • This defines the dimensions of the paper, board, or other substrate the machine can coat. Common ranges include:

     • Max Sheet Size: From 386 x 515 mm (15" x 20") for smaller machines up to 730 x 1040 mm (28" x 40") or even larger for industrial models.

     • Min Sheet Size: Can be as small as 125 x 180 mm or 210 x 250 mm.

3. Material Thickness Compatibility (GSM or mm):

   • Paper/Board: Typically ranges from 60 GSM to 450 GSM. High-end machines might handle up to 600-800 GSM board.

   • Other Substrates: Some machines are designed for wider thickness ranges to coat plastic sheets, PVC, wood, metal, glass, etc., handling thicknesses from 1 mm up to 60 mm.

4. Coating Speed (Impressions Per Hour - IPH or meters per minute):

   • Varies significantly based on automation level, machine size, and coating type.

   • Automatic Machines: Can range from 2000 to 8000 IPH.

   • Semi-Automatic/Manual: Lower speeds, often 1000-3000 IPH or 15-40 meters per minute for conveyor-type systems.

5. UV Lamp Specifications:

   • Number of Lamps: Typically 1 to 3 UV lamps. Some larger systems may have more.

   • Lamp Intensity/Power: Measured in Watts per inch (W/inch) or Kilowatts (kW). Common intensities are 200-500 W/inch.

     • Example: 400 Watt/inch (equivalent to 10.0 kW to 20.8 kW for wider machines).

   • Lamp Life: Important for maintenance planning.

   • Cooling System: Essential to dissipate heat generated by UV lamps (e.g., blowers, water cooling systems).

   • UV Ray Leaking Prevention Device: Safety feature.

   • Automatic Lamp ON/OFF: Lamps turn off if the conveyor stops or material flow is interrupted.

6. IR (Infrared) Curing/Drying System (Optional but common):

   • Used for aqueous (water-based) coatings or for pre-drying before UV coating.

   • Number of IR lamps and their power (e.g., 24 x 1KW lamps).

7. Automation Grade:

   • Manual: Operator feeds sheets one by one.

   • Semi-Automatic: Features an automatic feeder, but delivery might be manual.

   • Automatic: Includes automatic feeding, coating, curing, and stacking/delivery systems.

8. Feeding System:

   • Automatic Feeder: Often a vacuum suction feeder for smooth, continuous sheet feeding.

   • Pile Height (Feeder): The maximum stack height the feeder can handle (e.g., 350 mm, 800 mm).

9. Delivery System:

   • Chain Delivery with Receding Stacker: For neat stacking of coated sheets.

   • Automatic Down Pile Delivery: Automatically lowers the stack.

   • Vacuum-based Absorption Paper Delivery: Ensures stable paper movement throughout the coating process.

10. Coating Control:

    • Adjustable Coating Thickness: Allows for varying gloss levels and protection (e.g., 3-8 GSM coating thickness).

    • Roller System: Precision rollers (e.g., rubber, metering, impression rollers) for uniform coating application.

    • Speed Differential Oil Delivery System: For optimized coating.

    • Grid Ceramic Roller / Anilox Roller: For precise and consistent coating application, especially for spot UV.

11. Power Requirements:

    • Voltage: Usually 220V/380V/440V (three-phase is common for larger machines).

    • Total Power Consumption (kW or HP): Can range from 2 kW (for smaller models) to 55 kW or more for large, fully automatic systems.

12. Machine Dimensions and Weight:

    • Crucial for factory layout and installation.

    • Dimensions (L x W x H) and weight vary widely based on size and features (e.g., Weight: 700 kg to 8500 kg+).

III. Additional Features and Considerations:

• User-Friendly Interface: Touch screen control panels for easy operation and monitoring.

• Safety Features: Emergency stop buttons, UV ray leaking prevention, automatic shut-off if covers are opened.

• Precise Registration (for Spot UV): Features like swinging-downward front lay or rotating side lay for accurate sheet positioning.

• Anti-Scratch/Anti-Static Devices: To prevent marks and ensure smooth material handling.

• Automatic Roller Cleaning System: Reduces maintenance time.

• Chemical Circulation System: For efficient management of UV varnish.

• Durable Construction: Stainless steel and mild steel components for longevity.

• Versatility: Ability to handle various types of UV and aqueous coatings (gloss, matte, textured).

• Applications:

  • Printing Industry: Brochures, business cards, book covers, posters, calendars, magazines.

  • Packaging Industry: Carton boxes, product packaging, labels.

  • Other Industries: Wood panels, furniture components, plastic sheets, metal plates, glass, PVC profiles, medical devices, photography.
