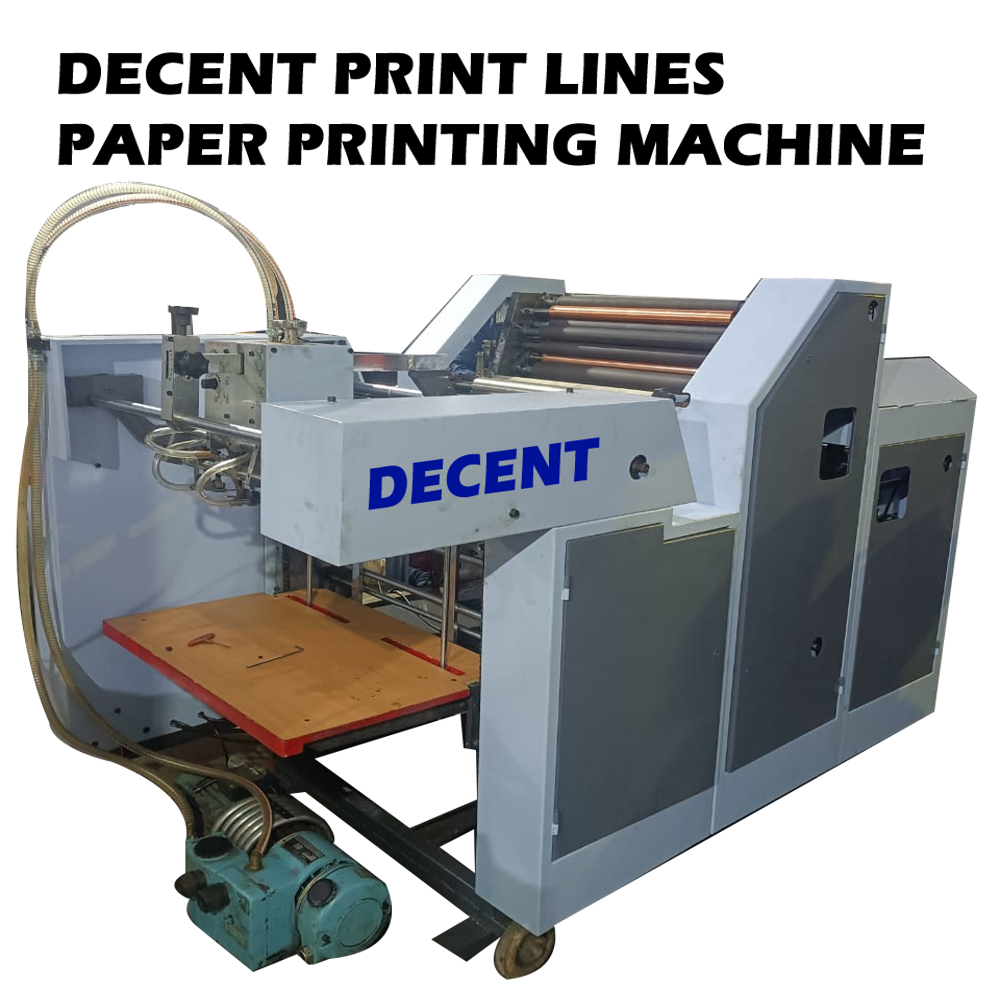

Double Color Paper Printing Machine 20X30

Double Color Paper Printing Machine 20X30 Specification

Type
Paper Printing Machine

Material
Paper

Capacity
6000 Pcs/hr

Printing Speed
6000 PPM

Computerized
No

Automatic Grade
Automatic

Plate Type
Other

Print Direction
Other

Ink Type
Other

Color Management
Other

Control System
Human Machine Interface

Power
7 Horsepower (HP)

Width
6 Foot (ft)

Weight (kg)
2800 Kilograms (kg)

Dimension (L*W*H)
8 Foot (ft)

Warranty
1 year

Double Color Paper Printing Machine 20X30 Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mumbai

Payment Terms
Cash in Advance (CID), Cheque

Supply Ability
3 Units Per Month

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden Boxes.

Main Export Market(s)
Western Europe, Africa, Asia, Eastern Europe

Main Domestic Market
All India

About Double Color Paper Printing Machine 20X30

Model two offset set fed two in one printing machine model DPL mini solna type specialist printing machine (pipe) and front feeding Paper printing and Non-Women bag printing machine size 10x15 to 22x32 a level.

This machine heavy duty is Non-woman bag best printing and paper printing paper and Non woman bag one setting printing or No machine function changing Non-woman bag vacuum feeding molerise table automatic Impression on off. This machine includes all technical solution for easy operation and for increasing productivity. The machine is compact and solid built on a strong C.I. frame. It is reliable at any working speed. These machine is equipped with high grade hardened grounded gears for its smooth operation for year.

Technical Specification :

Description	16" X 22"	18" x 25"
Paper Size Max.	406 x 550 mm	460 x 640 mm
Paper Size Min.	150 x 178 mm	230 x 280 mm
Printing Area	390 x 545 mm	445 x 635 mm
Plate Size (0.42mm)	435 x 558 mm	510 x 665 mm
Blanket Size (1.9mm)	490 x 560 mm	570 x 670 mm
Stock Rang	30 to 450 gsm	30 to 450 gsm
Pile Height Feeder	350 mm	800 mm
Pile Height Delivery	Fix	410 mm
Gripper Margin	9 mm	9 mm
Running Speed	6000 / ph	8000/ph
Power Require	3 HP	5 HP
Height	1450 mm	1650 mm
Floor Spaces	1200 x 1750 mm	1290 x 1935 mm
Machine Weight	1380 kgs	2600 Kgs.
