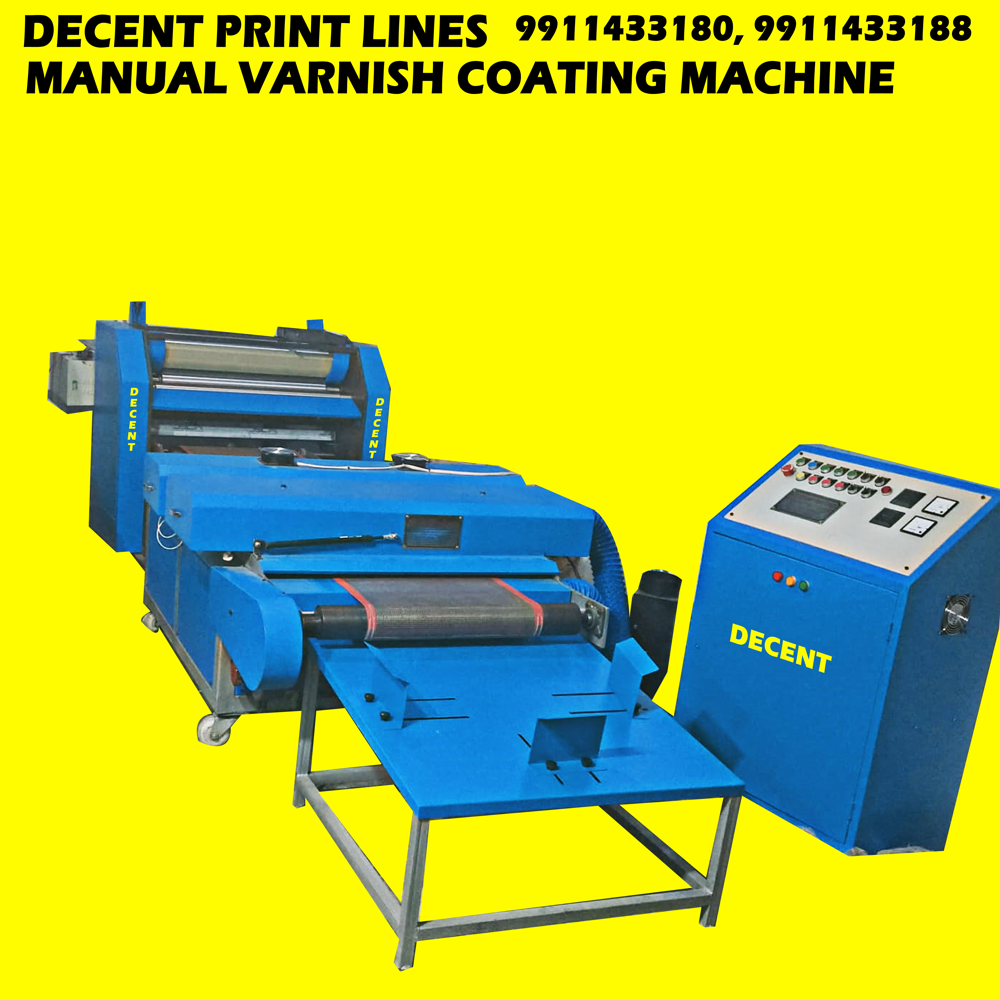

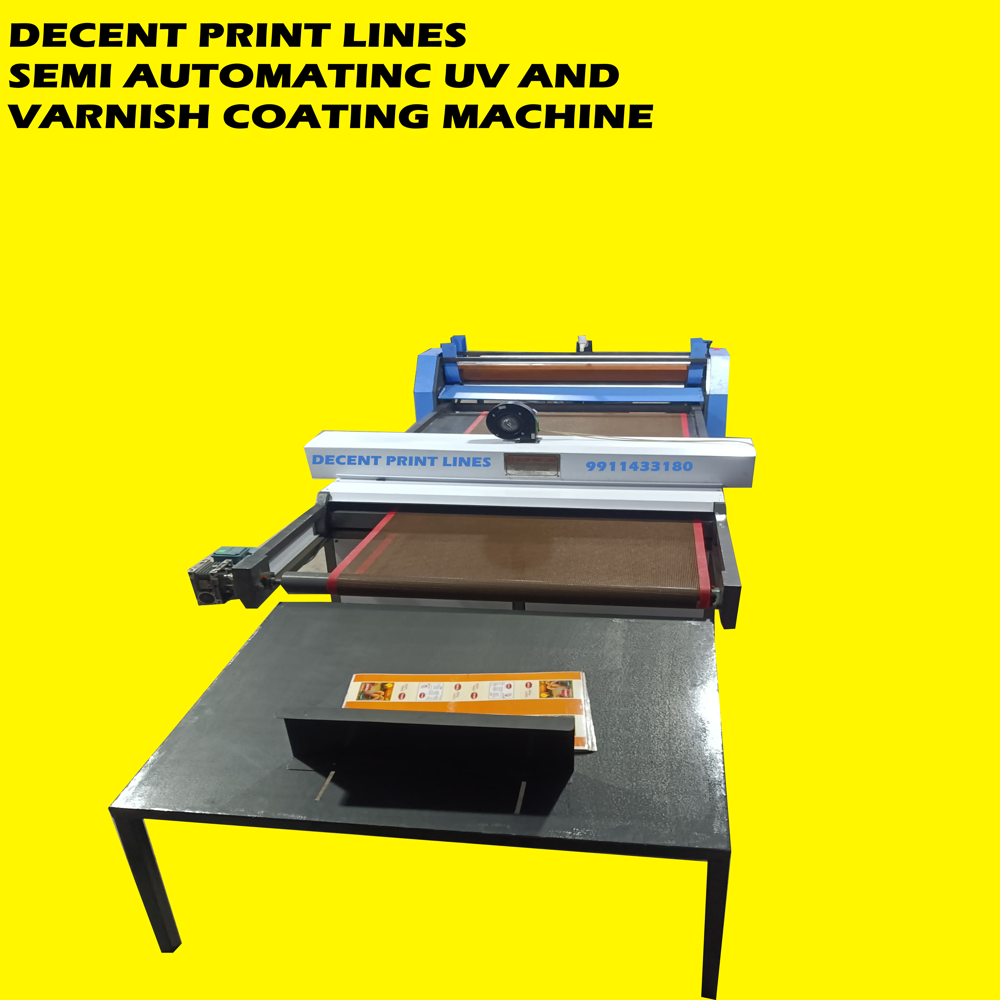

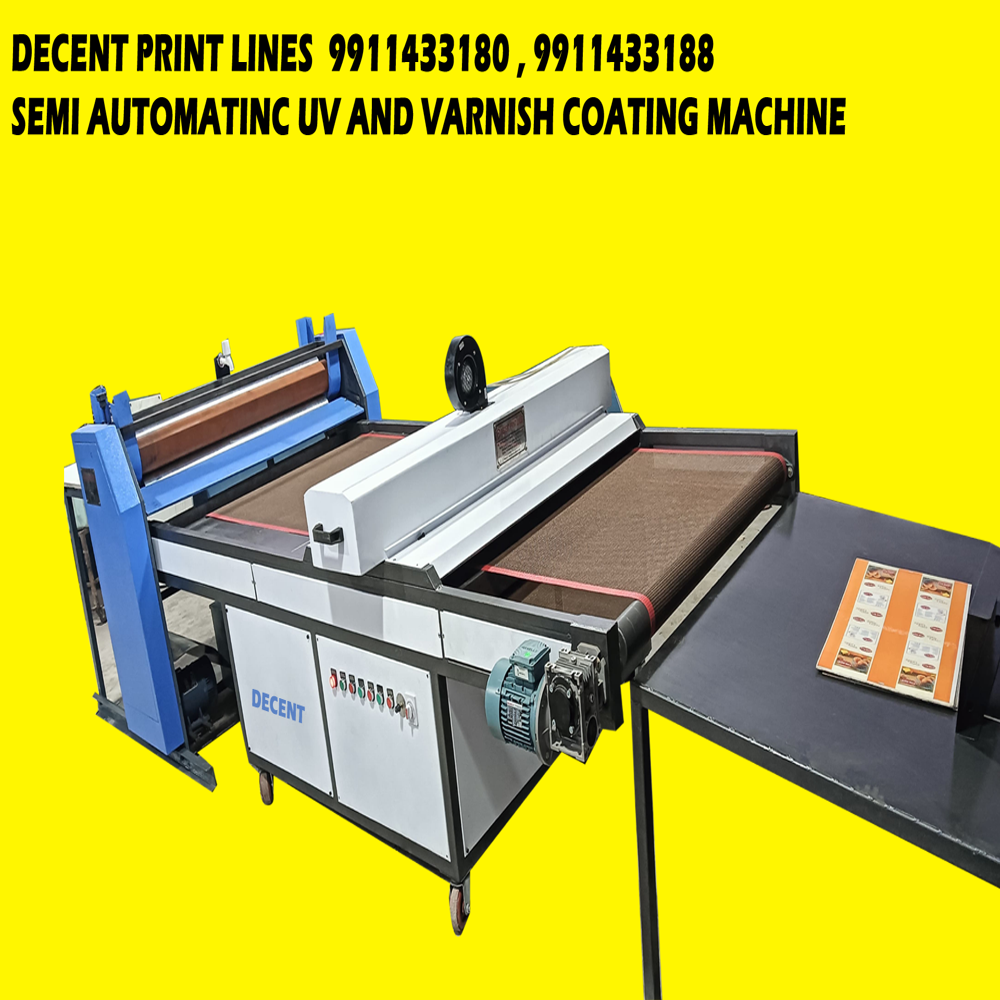

Semi Automatic Aqueous and UV Coating Machine

About Semi Automatic Aqueous and UV Coating Machine

Mfrs of Non Wowam Printing Machine paper Printing Machine Poly Bag Printing Machine UV CoatingUV Curing System Automatic Lamination Machine Paper Cutting Machine etc

DPL is Indias leading company engaged in manufacturing of full range of UV Coating and Curing Systems Screen Printing Machines The company is located in Faridabad an industrial town in the out skirts of Faridabad It has fully equipped modern factory

DPL Machinery fully automatic coater curing system model solna type Indian Machinery This Machine includes all technical solution for easy operation and for Increasing Productivity The Machine is compact solid built on a strong Cl Frame It is relable at any Working speed This Machine machine is equipped with high grade hardened grounded gears for its smooth operation for year

The UV curing lamp used in it are one of the best in the world It consist of total vacuum bed for smooth curing of paper efficient cooling system for lamps

Application

Precise registration of high speed using precision adjustable side and front lay

Powerful stream feeder to handle stock from 30 gsm to 400 gsm

User adjustable Double sheet Detector

Delivery convear steeker table automatically up down with paper setting

Three roller attachment Two Cylinder

Streat Arm gripper for high speed is accurate registration

Speed maximum 8000 per hour

Plate Clamps suitable for clamping blanket or photopelymer plates

Specification

Description

15x 20

18 x 25

20 x 30

23 x 36

28x 40

Paper Size Max

386 x 515 mm

460 x 640 mm

510 x 770 mm

585 x 915 mm

715 x 1020 mm

Paper Size Min

210 x 250 mm

230 x 280 mm

305 x460 mm

305 x 460 mm

305 x460 mm

Printing Area

370 x 505 mm

445 x 635 mm

495 x 750 mm

570 x 900 mm

700 x 1005mm

Gipper Margin

9mm

9mm

9mm

9mm

9mm

Running Speed Max

8000 rph

8000 rph

7000 rph

6000 rph

6000 rph
